Stainless Steel Rope Mesh Netting
Features
- Ideal for diverse applications
- Soft but strong and durable
- Excellent corrosion resistance
- Aesthetic appearance
- Flexible
- High flexibility
- Long service life
Stainless Steel Rope Mesh Netting (Tecco Mesh)
Stainless steel rope mesh netting also known as Tecco mesh, whether in office spaces, public areas, schools, museums, zoos, suspension bridges, scenic spots, we will find it- rope mesh netting. The mesh netting is favored by all walks of life due to its attractive appearance, safety and durability. It combines the characteristics of functionality, aesthetics, and long service life.

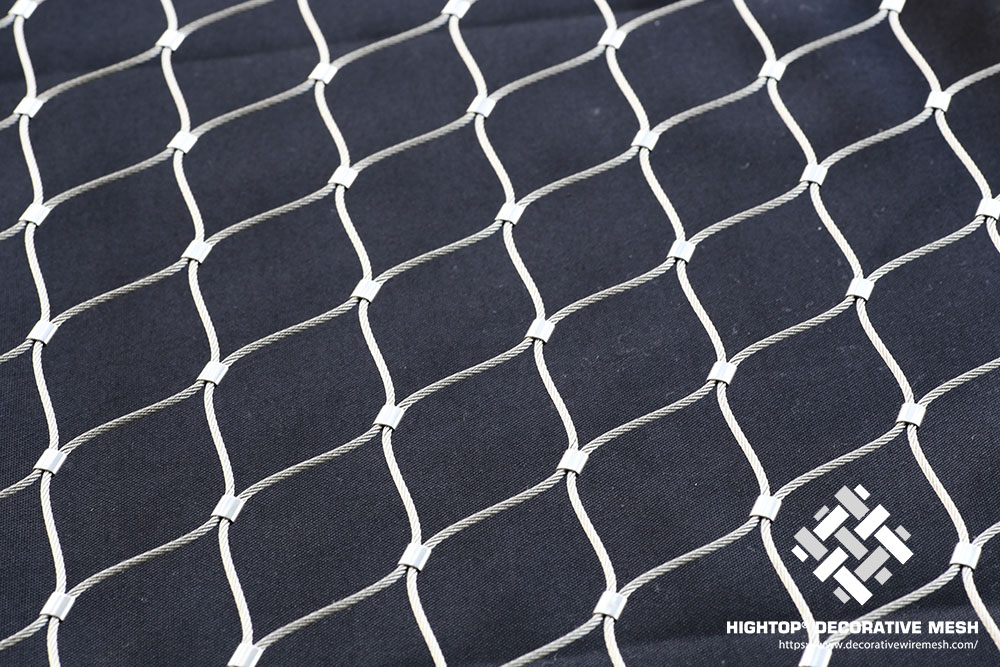

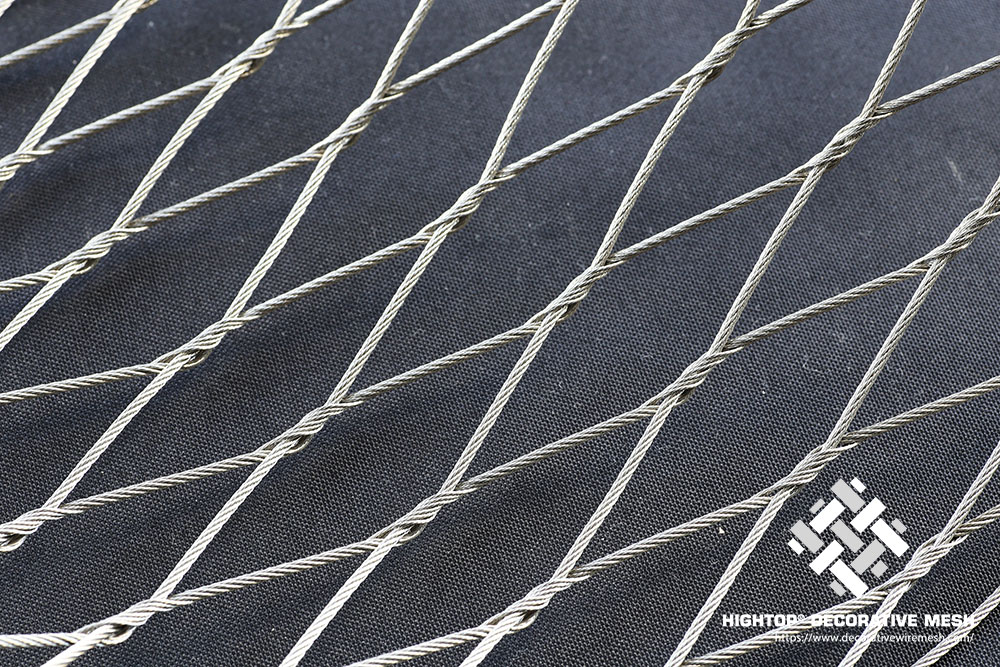

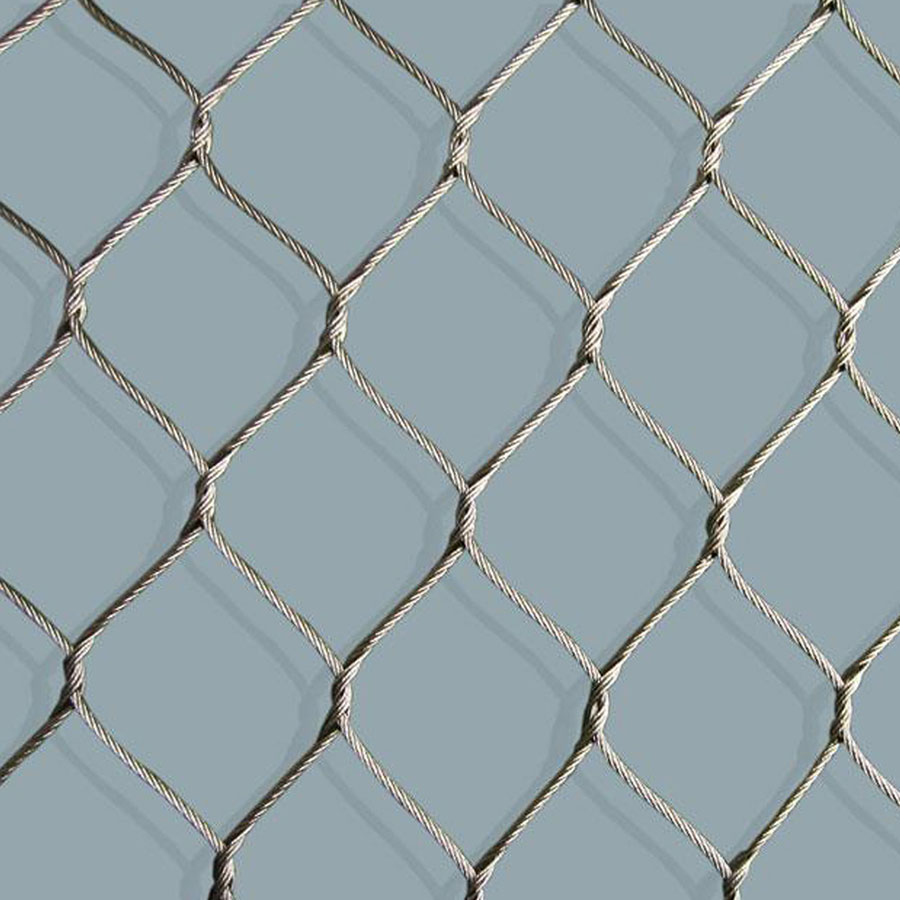

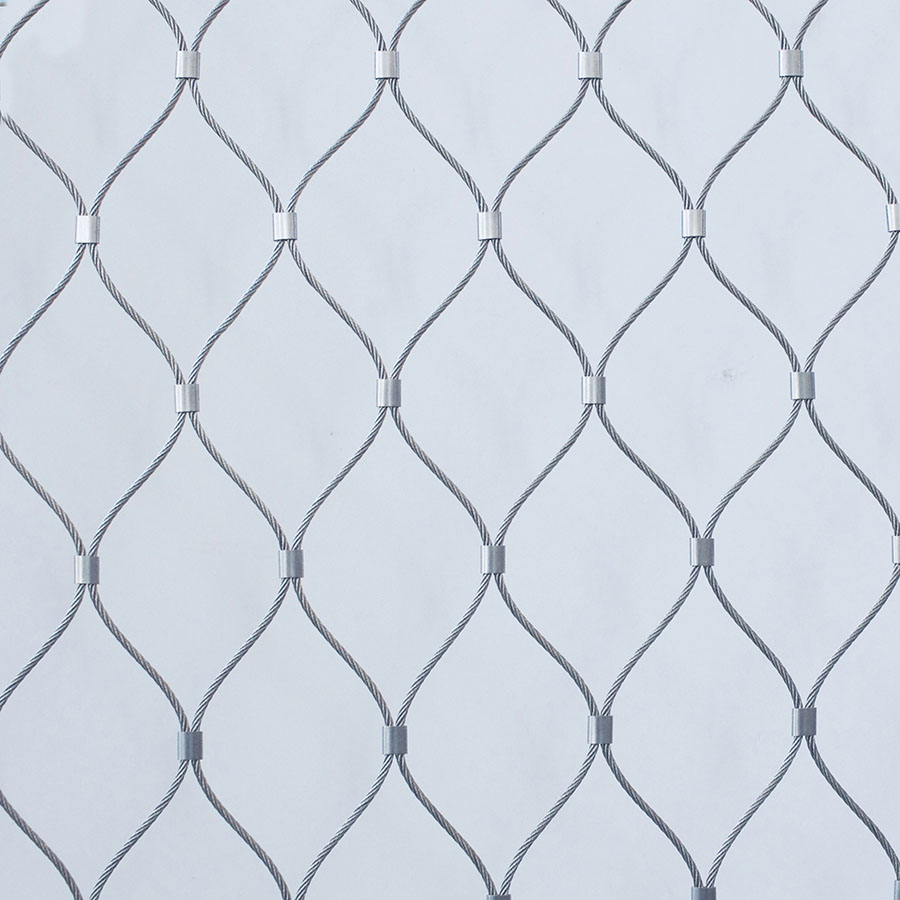

Stainless steel rope mesh netting can be used instead of conventional railings, usually made of 304, 316, 304L and 316L stainless steel. Stainless steel rope netting can be divided into two main types: knotted rope mesh and ferrule rope mesh. The former is composed of ropes that are entangled together, and the latter refers to the ropes combined with ferrules made of the same stainless steel.
Why is the stainless steel rope mesh netting so popular?

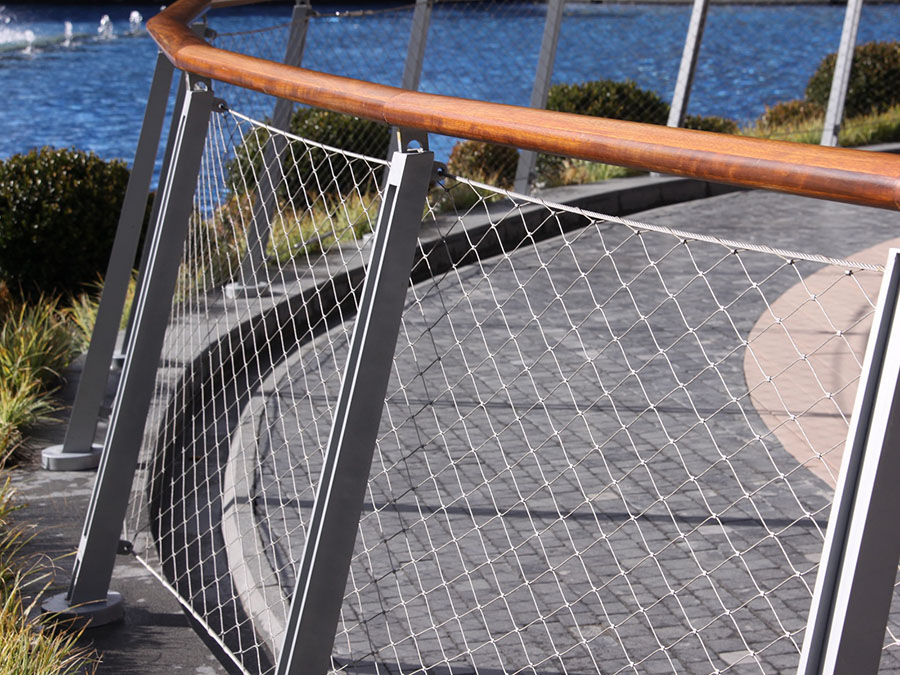

As a kind of handrail or railing, on one hand, stainless steel rope mesh netting could be so durable and safe due to its property of excellent corrosion resistance and high strength. On the other hand, the reason why it attracts increasing attention from architects is the unique visual impact it brings as a railing material. From a physical point of view, it fulfills the function of being an effective and reliable barrier, and it is so transparent that it neither affects the lighting nor the line of sight.

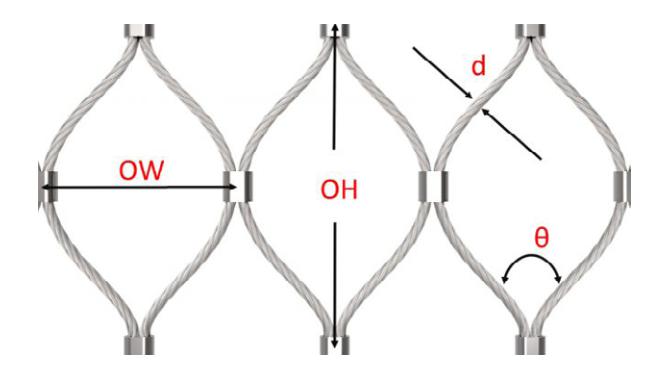

For measuring purposes the ferruled mesh is assumed to be stretched to create a 60°angle at the top and bottom of the diamond.
- OW = Opening Width
- OH = Opening Height
- d = Cable Diameter
- θ = 60° Angle
| Cable diameter | Mesh opening size | Nominal break | ||
| inch | mm | inch | mm | lbs. |
| 1/8 | 3.2 | 2×2 | 51×51 | 1600 |
| 3/32 | 2.4 | 3×3 | 76×76 | 920 |
| 3/32 | 2.4 | 2×2 | 51×51 | 920 |
| 5/64 | 2.0 | 2×2 | 51×51 | 676 |
| 5/64 | 2.0 | 1-1/2x 1-1/2 | 38×38 | 676 |
| 1/16 | 1.6 | 1-1/2x 1-1/2 | 38×38 | 480 |
| 1/16 | 1.6 | 1×1 | 25.4×25.4 | 480 |
| 3/64 | 1.2 | 1-1/2x 1-1/2 | 38×38 | 270 |
| 3/64 | 1.2 | 1×1 | 25.4×25.4 | 270 |
Application
- Building facade
- Partitions & suspended ceilings
- Suspended bridges railing

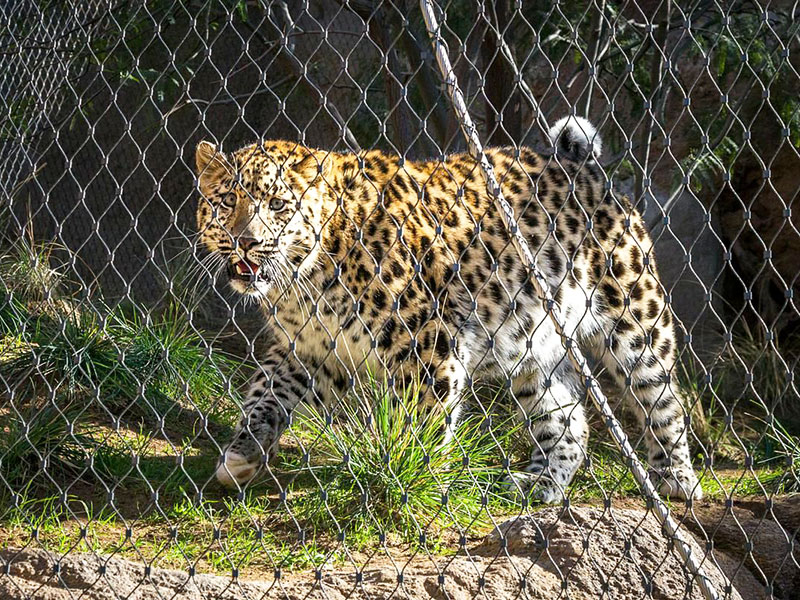

- Zoo mesh
- Decoration mesh
- Slop protection
- Specifications
-
For measuring purposes the ferruled mesh is assumed to be stretched to create a 60°angle at the top and bottom of the diamond.
- OW = Opening Width
- OH = Opening Height
- d = Cable Diameter
- θ = 60° Angle
Cable diameter Mesh opening size Nominal break inch mm inch mm lbs. 1/8 3.2 2×2 51×51 1600 3/32 2.4 3×3 76×76 920 3/32 2.4 2×2 51×51 920 5/64 2.0 2×2 51×51 676 5/64 2.0 1-1/2x 1-1/2 38×38 676 1/16 1.6 1-1/2x 1-1/2 38×38 480 1/16 1.6 1×1 25.4×25.4 480 3/64 1.2 1-1/2x 1-1/2 38×38 270 3/64 1.2 1×1 25.4×25.4 270 - Application
-
Application
- Building facade
- Partitions & suspended ceilings
- Suspended bridges railing
- Zoo mesh
- Decoration mesh
- Slop protection
